Waste Plastic Film Pelletizing Line

  • Product Name:  Waste Plastic Film Pelletizing Line
  • Product Details:  Waste Plastic Film Pelletizing Line

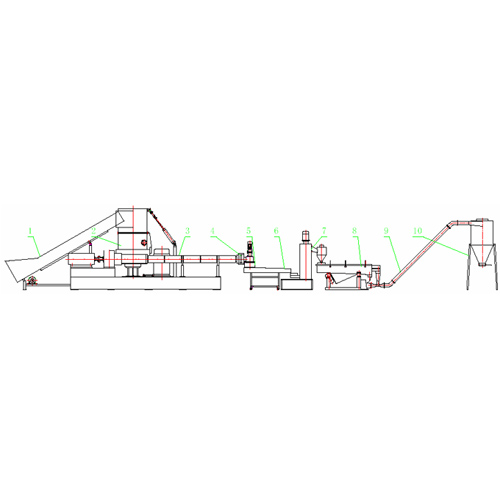

1.belt conveyor 2.close-grained machine 3.ML-130/33 single screw extruder 4.hydraulic net-changing device 5.water ring particle cutting system 6.flowing groove 7.centrifugal dehydrator 8.shale shaker 9.air conveying system bin

First Technical Parameters of the Main Extruder Unit
1. Length-diameter Ratio(L/D):33 :1
2. Screw Diameter:φ130
3. AC Motor Power:132kW
4. Revolving Speed:10~120rpm
5. Cooling Method:forced air cooling
6. Method of Lubrication:forced lubrication system
7. Heating Method:electrical heater
8. Particle Cutting Method:water ring membrane surface cutting
9. Control Section: 7 sections(including the headpiece)
10. Output:300—500kg/hr

Second Technical Parameters of the Close-grained Machine
1. AC Motor:90kW
2. Temperature Control:1 section
3. Cooling Method:air cooling
4. Movable Blade:3 groups
5. Fixed Blade:14 sets
