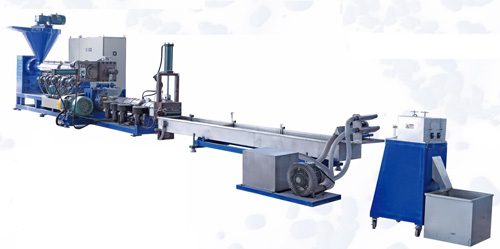

Waste Plastic Film Double Stage Pelletizing line

  • Product Name:  Waste Plastic Film Double Stage Pelletizing line
  • Product Details:  Waste Plastic Film Double Stage Pelletizing line

1. Screw conveyor
(1)Motor Power:2.2kw
(2)Frequency control
(3)Diameter:250mm
(4)Working length:3000mm
(5)Made of stainless steel SUS304

2. Force Feeder
(1) Motor Power:5.5kw
(2) Frequency Control

3. φ120 Single-Screw Extruder(Master)
(1) 280Model Gear Box:high torque, low noise, Hardened teeth grinding gear box with an external cooling circulatory
(2) Screw: 38CrMoA1A; nitride treatment
(3) Barrel/Silo: 38CrMoA1A; nitride treatment
(4) Screw Diameter:120mm
(5) L/D:28:1
(6) Moptor Power:55kw
(7) Heating Section:9
(8) Thermostat Section:6
(9) Hydraulic screen exchanger

4.φ120 Single-Screw Extruder120
(1) 225Model Gear Box:high torque, low noise, Hardened teeth grinding gear box with an external cooling circulatory
(2) Screw: 38CrMoA1A; nitride treatment 38CrMoAlA
(3) Barrel: 38CrMoA1A; nitride treatment
(4) Screw Diameter:120mm
(5) L/D:15:1
(6) Mopto rPower:30kw, Frequency Control
(7) Heating Section:7
(8) Thermostat Section:4
(9) Hydraulic screen exchanger
