- Product Name: Single-single Screws Extruder for XPS Foamed Board
- Model NO.: BHDD
-
Product Details: Single-single Screws Extruder for XPS Foamed Board
I. Introduction to XPS Foamed Board and BHDD series machines:
With good honeycomb texture of closed pore; lower density, water absorption, thermal-conductivity, and coefficient of vapour permeability than common foamed material; having good advantage of high strength, low density, corrosion resisting, anti-aging; low cost.
It is widely used in heat preservation and insulation of building industry, road, railway, airport, squre, and home decoration, etc.BHDD series of machines are combined by single and single screws specially for XPS board extrusion.
II. Technical parameters:Machine Type |
Screw Diameter (mm) |
L/D | Motor Power (KW) |
Heating Zones | Heating Power |
Output (m3/d) |
Board Width (mm) |
Board Thickness (mm) |
Total Power (KW) |
Total Weight (Ton) |
Outline Dimension (mm) |
| BHDD- 135/150 |
135 | 36 | 75 | 8 | 24 | ＞200 | 600/ 900 |
20-70 | 200 | 28 | 40000* 1400*4000 |
| 150 | 40 | 45 | 8 | 32 | |||||||
| BHDD- 165/200 |
165 | 36 | 90 | 8 | 32 | ＞300 | 600/ 900 |
20-180 | 280 | 33 | 50000* 1600*4000 |
| 200 | 40 | 75 | 8 | 40 |
-

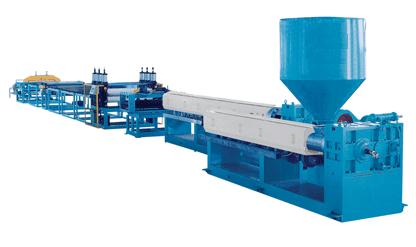

Product Images: Single-single Screws Extruder for XPS Foamed Board
