- Product Name: PVC Pipe Extrusion Line
- Model NO.: PVC
-
Product Details: PVC Pipe Extrusion Line
- Application:
PVC pipe extrusion line is specially for pipes used in water pipe supply of house and industry, compress air transportation.
- Advantages:
- Good effect of plastication, Stable haul-off unit, to make sure of high-quality pipes.
- Stable haul-off system, to make sure of high-quality pipes.
- Special PLC control, with stable production.
- High-speed extrusion, up to 20m/min of small diameter pipes for water supply.
- Technical parameters:
Machine Type |
BHZ45/90 | BHZ50/104 | BHZ65/132 | BHZ80/156 | BHZ92/188 |
| Main Motor Power (KW) | 39.8 | 54.8 | 86.7 | 129.7 | 179.6 |
| Screw Diameter (mm) |
45/90 | 50/104 | 65/132 | 80/156 | 92/188 |
| Screw Rotary Speed (R/min) | 34.7 | 34.7 | 34.7 | 38 | 38 |
| Extrusion Output (Kg/hr) |
80 | 120 | 250 | 360 | 675 |
| Pipe Diameter(mm) | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 |
| Haul-off Branches | 2 | 2 | 2 | 3 | 4 |
| Haul-off Force | 6 | 8 | 11 | 20 | 30 |
| Haul-off Speed (m/min) |
15 | 12 | 9 | 8 | 4 |
| Auxiliary Power (KW) | 14 | 14 | 14 | 21.5 | 41 |
| Outline Dimensions(mm) | 2200*1440 *1950 |
2775*1550 *2200 |
3660*1550 *2200 |
4230*1550 *2200 |
5370*1860 *2400 |
-

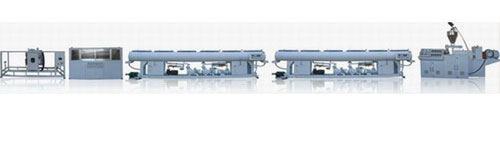

Product Images: PVC Pipe Extrusion Line
