- Product Name: PE Pipe Extrusion Line
- Model NO.: PE
-
Product Details: PE Pipe Extrusion Line
- Application:
PE, PP pipe extrusion line is specially for pipes used in water pipe supply of house and industry, compress air transportation.
- Advantages:
- Good effect of plastication, up to 20m/min of small diameter pipes.
- Stable haul-off unit, to make sure of high-quality pipes.
- Special PLC control, with stable production.
- High-speed extrusion.
- Technical parameters:
| Machine Type | BHD45/33 | BHD65/33 | BHD75/33 | BHD90/33 | BHD120/33 | BHD150/33 |
| Main Motor Power (KW) | 37 | 90 | 110 | 160 | 280 | 400 |
| Screw Diameter (mm) |
45 | 65 | 75 | 90 | 120 | 150 |
| L/D | 33 | 33 | 33 | 33 | 33 | 33 |
| Screw Rotary Speed (R/min) | 20-150 | 20-150 | 20-150 | 20-110 | 20-90 | 20-75 |
| Torque Allotment (N) |
11200 | 25000 | 45000 | |||
| Extrusion Output (Kg/hr) |
110 | 250 | 320 | 450 | 750 | 900 |
| Pipe Diameter(mm) | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 |
| Haul-off Branches | 2 | 2 | 2 | 3 | 4 | 6 |
| Haul-off Power | 6 | 8 | 11 | 20 | 30 | 40 |
| Haul-off Speed (m/min) |
15 | 12 | 9 | 8 | 4 | 2 |
| Auxiliary Power (KW) | 14 | 14 | 14 | 21.5 | 41 | 56 |
| Outline Dimensions(mm) | 2200*1440*1950 | 2775*1550*2200 | 3660*1550*2200 | 4230*1550*2200 | 5370*1860*2400 | 6630*1920*2450 |
-

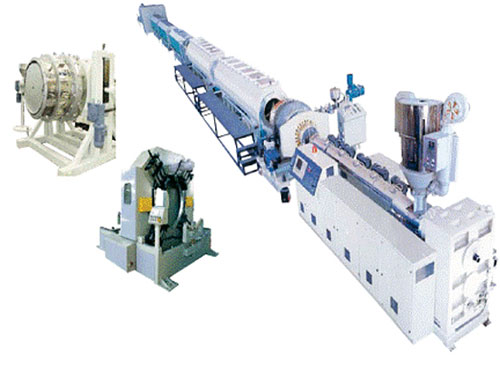

Product Images: PE Pipe Extrusion Line
