- Product Name: Mixing Units for Plastics
- Model NO.: BHHL
-
Product Details: Mixing Units for Plastics
1. Pratical Application:
BHHL series Mixing Unit is special for mixing, color, drying, of kinds of resin such as PE, PP, PVC, ABS, PC, etc..
2. Structure:
It is combined by high-speed mixer (hot mixer) and low-speed mixer (cool mixer).
3. Technical Parameters:
BHHL series Mixing Unit is special for mixing, color, drying, of kinds of resin such as PE, PP, PVC, ABS, PC, etc..
2. Structure:
It is combined by high-speed mixer (hot mixer) and low-speed mixer (cool mixer).
3. Technical Parameters:
Model |
BHHL100/200 | BHHL200/500 | BHHL300/600 | BHHL500/1000 | BHHL800/1600 |
| Total volume (L) hot/cool | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Useful volume (L) | 75/160 | 150/320 | 225/390 | 375/650 | 600/1050 |
| Stir rotational speed (rpm) | 650/130/180 | 475/950/130 | 475/950/130 | 430/860/60 | 370/740/50 |
| Heating and cooling mode | Electric, self-friction /water cooling |
Electric, self-friction /water cooling |
Electric, self-friction /water cooling |
Electric, self-friction /water cooling |
Electric /water cooling |
| Mixing Time (min) | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 |
| Motor Power (KW) | 14/22/7.5 | 30/42/11 | 40/50/11 | 55/75/18.5 | 60/90 |
| Outline Dimension (mm) | 3780×1870 ×2250 |
4580×2240 ×2470 |
4580×2440 ×2570 |
4600×3000 ×4050 |
4850×3860 ×6550 |
| Weight (Kg) | 3200 | 3400 | 4200 | 5800 | 8700 |
-

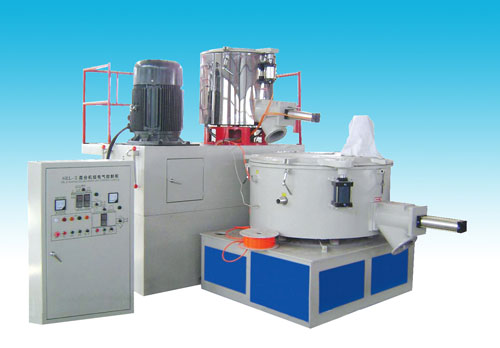

Product Images: Mixing Units for Plastics
