- Product Name: Dual-stage Pelletizing Line for PVC
-
Product Details: Dual-stage Pelletizing Line for PVC
- Introduction of Dul-stage Pelletizing Lines for PVC:
Main machine is composed of parrel twin-screw extruder and single-screw extruder.
- Parallel twin-screw part is special for material cutting, mixing and plastication; single-screw part is for get pressure and pellet extrusion.
- Advantages: special structure of dul-stage can invoid material catbolism due to high temperature; low energy consumption; high quality and output.
- It is popular used in thermal-sensitive plastics such as PVC, XLPE, etc..
- Technical parameters:
|
Machine Type |
L/D |
Max Rotational Speed (rpm) |
Motor Power(KW) |
Output (Kg/h) |
|
|
BH50-100 |
BHS-50 |
20~48 |
500/600 |
45/55 |
150~300 |
|
BHD-100 |
7~15 |
60/90 |
22/30 |
||
|
BH63-150 |
BHS-63 |
20~48 |
500/600 |
75/90 |
300~600 |
|
BHD-150 |
7~15 |
60/90 |
37/45 |
||
|
BH72-180 |
BHS-72 |
20~48 |
500/600 |
110/132 |
400~800 |
|
BHD-180 |
7~15 |
60/90 |
45/55 |
||
|
BH92-200 |
BHS-92 |
20~48 |
400/600 |
280/540 |
800~1500 |
|
BHD-200 |
7~15 |
60/90 |
55/75 |
||
-

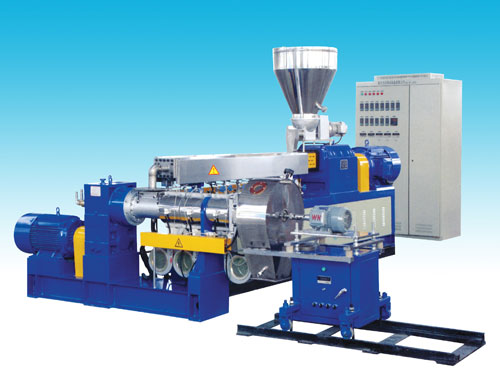

Product Images: Dual-stage Pelletizing Line for PVC
